Pinarello Dogma K HYDRO Frameset

Pinarello Dogma K HYDRO Frameset
Please select options


The bike of Champions, the icon of road bikes, is now available also with hydraulic disc brakes!

Same geometries, the same identical feeling of riding, but with the addition of a new braking system. A name that means, everywhere in the world of Cycling, 'the maximum': DOGMA

The 2014 Dogma K Hydro is the perfect combination between comfort and uncompromising performance

Key differences from the Dogma 65.1 frame are the seat angle with an inclination of about one degree less, lesser steering angle varying between 0.5 degrees difference in the smaller frames and 1.5 degrees in the bigger frames

The Dogma K Hydro 65.1 Think2 has 135mm rear spacing for disc brake hubs and just like the Dogma 65.1 is the perfect frame which contains everything that a rider could ever dream of: absolute performance, stiffness, explosive power, precision, all with the unique Pinarello design. The DOGMA K Hydro uses Torayca 65 Ton HM 1K carbon fiber with Nanoalloy technology, exclusively from Toray the Japanese carbon giant and only available to Pinarello

The Dogma K Hydro 65 can also allow for both mechanical and electrical drive trains. A new fork descended from the ONDA2 is called ONDA HD (Hydraulic Disk) designed especially for the new braking system. The fork is more integrated with the frame

By adding a tail to the fork at the crown and reshaping the downtube interface, the air flow has been smoothed out around the brake and fork crown

Another Hydro specific feature are the New chainstays to accommodate the new RAD braking system derived from our DOGMA XC - Disc brakes in a granfondo soul


Frame Carbon 60HM1K Torayca(R)
Fork Onda™ Carbon 65HM1K 1” 1/8 1” 1/2 integral system)
Bottom Bracket Italian Threaded

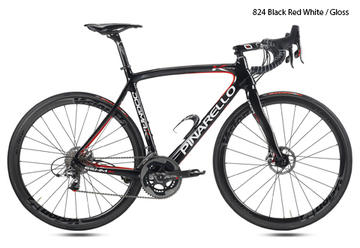

Color(s) 824/Black/Red/White Gloss
Sizes Sizes: 48.0, 51.5, 54.0, 56.0, 57.0, 58.0
Weight 900 grams (Size 54)

* Subject to change without notice.
