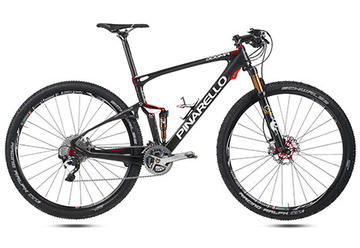

Pinarello Dogma XM Dual Susp 29r Frame/Fork

Pinarello Dogma XM Dual Susp 29r Frame/Fork
Please select options


Pinarello officially begins its off road cycling program with the same philosophy that has made it one of the most important names in road cycling: continuous innovation!

PINAFIT Geometry: All MTB manufacturers build their own frames on the assumption that the front fork should rotate 360°. This forces them to stretch the main triangle, compromising its own natural stiffness. With PINAFIT pushing on the pedals, you have the unbeatable feeling of riding a road bike, the front triangle has overwhelming lateral stiffness because it is a perfect triangle

Fork Stopper: The Forkstopper protects the frame and handlebars in case of falls, preventing their impact with the top tube

XPOWER: The seat clamp is our proven XPower ™ which ensures an extended grip on the seat tube, reducing about 50% stress to the area. Four screws lock down the seat post to the frame making it a single body

RAD:Rear Arm Asymmetric: DOGMA XM uses the RAD system that mounts the brake caliper on the left chainstay. This allows a more symmetrical and safe braking that does not affect the overall stability of the frame


Frame Carbon Torayca 65HM1K/Nanoalloy Technology
Fork Fox Factory 32 - 90mm of travel
Bottom Bracket PF92:PressFIT BB
Sizes Small 16.5', Medium 18', Large 19', XLarge
Weight 1050gr (size M)

* Subject to change without notice.
